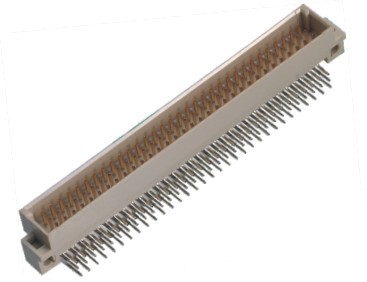

90°DIP PBT Male Din41612 WCON Connector Phosphor Bronze 2.54 Mm Pin Connector

WCON ELECTRONICS ( GUANGDONG) CO., LTD
Contact Now
    Buy cheap 90°DIP PBT Male Din41612 WCON Connector Phosphor Bronze 2.54 Mm Pin Connector from wholesalers

    Buy cheap 90°DIP PBT Male Din41612 WCON Connector Phosphor Bronze 2.54 Mm Pin Connector from wholesalers
    • Buy cheap 90°DIP PBT Male Din41612 WCON Connector Phosphor Bronze 2.54 Mm Pin Connector from wholesalers

    90°DIP PBT Male Din41612 WCON Connector Phosphor Bronze 2.54 Mm Pin Connector

    Ask Lasest Price
    Brand Name : WCON
    Model Number : 3410-332AMRSXXA1
    Certification : UL/CUL/SGS/ROHS
    Price : Negotiation
    Payment Terms : T/T
    Supply Ability : 800000kpcs
    Delivery Time : 15-25Day
    • Product Details
    • Company Profile

    90°DIP PBT Male Din41612 WCON Connector Phosphor Bronze 2.54 Mm Pin Connector

    2.54mm 3*32P 90°DIP PBT Male Din41612 Connector Phosphor Bronze Gold Flash /Sn


    Current Rating3.0AMP
    Contact Resistance30mΩ Max
    Withstand Voltage1000V AC/DC
    Insulation Resistance1000mΩ
    Operation Temperature﹣55℃ to +105℃
    Contact MaterialPhosphor Bronze
    Contact PlatingAu And Sn over Ni
    Fixing MaterialPhosphor Bronze
    Fixing PlatingSn over Ni
    Housing MaterialPBT+30%GF(UL94V-0)
    Cover MaterialPBT+30%GF(UL94V-0)

    Product Name: DIN41612 connector


    1. the characteristics: the product precision and reliable performance, good force strong


    2. material: 1 material: rubber core PBT plus 30% glass, terminal material: copper alloy.


    3. scope of application: the product is widely applied to the backplane and the daughter board communications equipment, industrial control equipment connected with the backboard and the daughter board connection, and telecommunications, aerospace and other fields.


    90°DIP PBT Male Din41612 WCON Connector Phosphor Bronze 2.54 Mm Pin Connector


    WCON Pcb Pin Male Header Connector Single Row Header 2.00mm 1*22P 180ƒÆ’†™ƒ¢¢š¬…¡ƒÆ’¢‚¬Å¡ƒš‚°DIPDrawing:D41612 3410-3XXXMRSXXAX.pdf

    Product Tags:

    96 pin connector



    32 pin connector
