product details

technical parameter

Rated Current	3.0AMP
Contact Resistance	20mΩ Max
Withstand Voltage	1000V AC/DC
Insulation Resistance	1000mΩ Min
Operation Temperature	﹣25℃ to +85℃
Pin Material	Brass
Contact Plating	Sn over Ni
Insulator Material	Polyester(UL94V-0)
Standard	PA66

Feature description

Item name: Wafer connector
1. product features: it makes the design and production process more convenient, more flexible, reducing production and maintenance costs, easy maintenance, easy to upgrade, improve design flexibility
2. product material: (UL94V-0) PA9T, PA6T, PA46, PA66 and so on

Drawing

Instructions
Wafer connector is mainly used for board to line connection, there is a pair of line ends Housing and terminals, the plate end of the Wafer insert PCB board, line end assembled good electronic line, and the plate end of Wafer pairs inserted into, forming a plate to line connection

Packing list
Boxed tube

Applications / applications
Application: apply to computer and peripheral equipment, communication products, test instruments, consumer electronics products, automotive industry, medical electronic products, the production of military and aerospace industry in which the device connecting the two active devices, current or signal transmission.

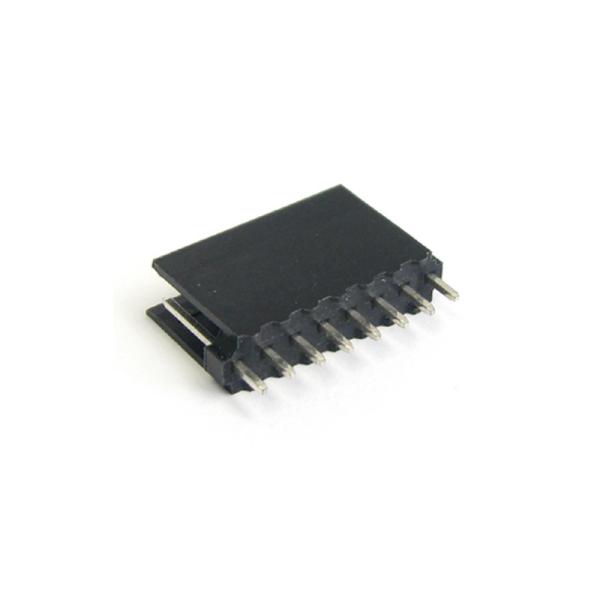

Product picture

Drawing Download

WF2547-1WSXXXXXX1.pdf
