2.00mm latch header idc socket connector brass lcp smt straight right angle mating with 5225

WCON ELECTRONICS ( GUANGDONG) CO., LTD
Contact Now
    Buy cheap 2.00mm latch header idc socket connector brass lcp smt straight right angle mating with 5225 from wholesalers

    Buy cheap 2.00mm latch header idc socket connector brass lcp smt straight right angle mating with 5225 from wholesalers
    • Buy cheap 2.00mm latch header idc socket connector brass lcp smt straight right angle mating with 5225 from wholesalers

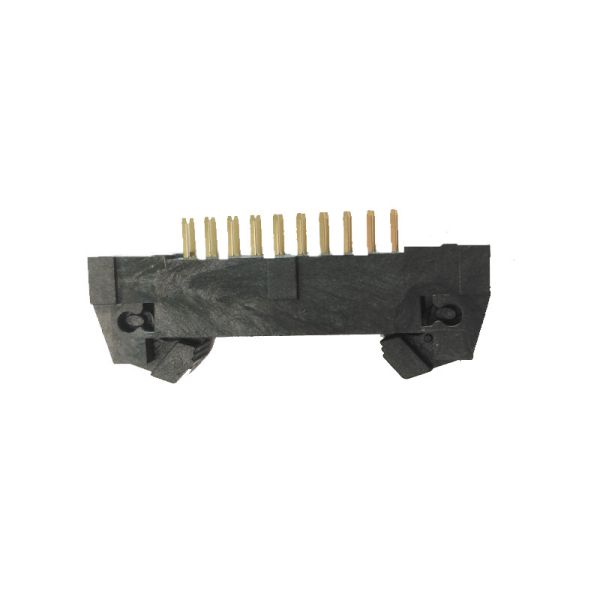

    2.00mm latch header idc socket connector brass lcp smt straight right angle mating with 5225

    Ask Lasest Price
    Brand Name : WCON
    Model Number : 3221-20SG0BST1
    Certification : UL/SGS/ROHS/ISO/QC/EHS
    Price : Negotiable. It depends on the customers' requests.
    Payment Terms : T/T
    Supply Ability : 800000 pcs
    Delivery Time : 15~25 Days
    • Product Details
    • Company Profile

    2.00mm latch header idc socket connector brass lcp smt straight right angle mating with 5225

    2.00mm latch header idc socket connector brass lcp smt straight right angle mating with 5225


    WCON Pcb Pin Male Header Connector Single Row Header 2.00mm 1*22P 180ƒÆ’†™ƒ ¢‚¬„¢ƒÆ’¢‚¬ ƒ¢¢š¬¢ž¢ƒÆ’†™ƒš‚¢ƒÆ’‚¢ƒ¢¢š¬…¡ƒš‚¬ƒÆ’¢‚¬¦ƒš‚¡ƒÆ’†™ƒ ¢‚¬„¢ƒÆ’‚¢ƒ¢¢‚¬Å¡‚¬ƒ¦‚¡ƒÆ’†™ƒ¢¢š¬…¡ƒÆ’¢‚¬Å¡ƒš‚°DIPDrawing:Ejector Header 3221-XXSXXBST1.pdf.


    Products IssuesProducts Descriptions
    Products Characteristics

    The ejector header connector is one of many connectors. It's a European style connector, which is a variety of connectors classified according to the actual use. It is named after its resemblance to the shape of a cow's horn. The ejector header connector is a very simple internal wiring device to use.

    Products SpecificationsCurrent Rating2.0AMP
    Contact Resistance20 Milliohm Max
    Insulation Resistance1000 Milliohm Min
    Withstand Voltage500V AC/Minute
    Operation Temperature-40℃ to + 105℃
    Contact MaterialBrass
    Contact PlatingAu or Sn over Ni
    Insulator MaterialLCP + 30 % GF UL94V-0
    SMT Lead Coplanarity0.1mm max 02-40P
    0.15 mm max Above 40P
    Products ApplicationEjector header connectors are mainly used in automotive, industrial, transportation, military/aerospace, medical equipment, instrumentation, etc.


    Product Tags:

    ejector header



    2mm header connector
