    WCON 8pin Wire To Board Connector Red Female Smt Pa46 With Cap / Latch

    Ask Lasest Price
    Brand Name : WCON
    Model Number : 3900-XXFMSNEWT01
    Certification : UL/SGS/ROHS
    Price : negotiation
    Payment Terms : T/T
    Supply Ability : 800000PCS
    Delivery Time : 15~25Day
    • Product Details
    • Company Profile

    WCON 8pin Wire To Board Connector Red Female Smt Pa46 With Cap / Latch

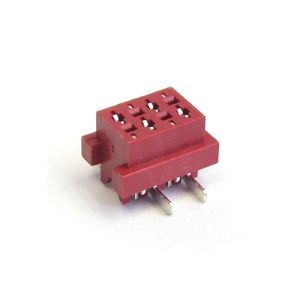

    WCON With CAP and Latch 1.27mm MRC Connector 8P Female SMT wire to board PA46 Red ROHS.


    Current Rating1.0AMP
    Contactt Resistance20mΩ Max
    Withstand Voltage500V AC/DC
    Insulation Resistance1000mΩ Min
    Operation Temperature﹣40℃ to +105℃
    Contact MaterialPhosphor Bronze
    Contact PlatingSn over Ni
    Insulator Material
    PA46+30%GF(UL94V-0)

    Item name: MRC connector
    product features: the use of a wide range of environmental protection, fire resistance, flame retardant, anti jump function
    material: insulation material: PBT/PA46/PA6T contact material: copper / Bronze
    scope of application: the product is widely used in computer, industrial control board, display, video card, digital camera, DVD, MP3, PDA, UPS, mobile phones, game consoles and other types of line ends and board.

    WCON Pcb Pin Male Header Connector Single Row Header 2.00mm 1*22P 180ƒÆ’†™ƒ ¢‚¬„¢ƒÆ’¢‚¬ ƒ¢¢š¬¢ž¢ƒÆ’†™ƒš‚¢ƒÆ’‚¢ƒ¢¢š¬…¡ƒš‚¬ƒÆ’¢‚¬¦ƒš‚¡ƒÆ’†™ƒ ¢‚¬„¢ƒÆ’‚¢ƒ¢¢‚¬Å¡‚¬ƒ¦‚¡ƒÆ’†™ƒ¢¢š¬…¡ƒÆ’¢‚¬Å¡ƒš‚°DIPDrawing:MRC 3900-XXFMXXEWT01.pdf
